Split Steel Backed Sleeve Bearing Inserts
>
2-7/16" Split 750 °F Carbon Bearing Insert
Print Page
HT750 Split Steel Backed Carbon Sleeve Bearing: SSP212-HT7-244
HT750 Split Steel Backed Carbon Sleeve Bearing: SSP212-HT7-244

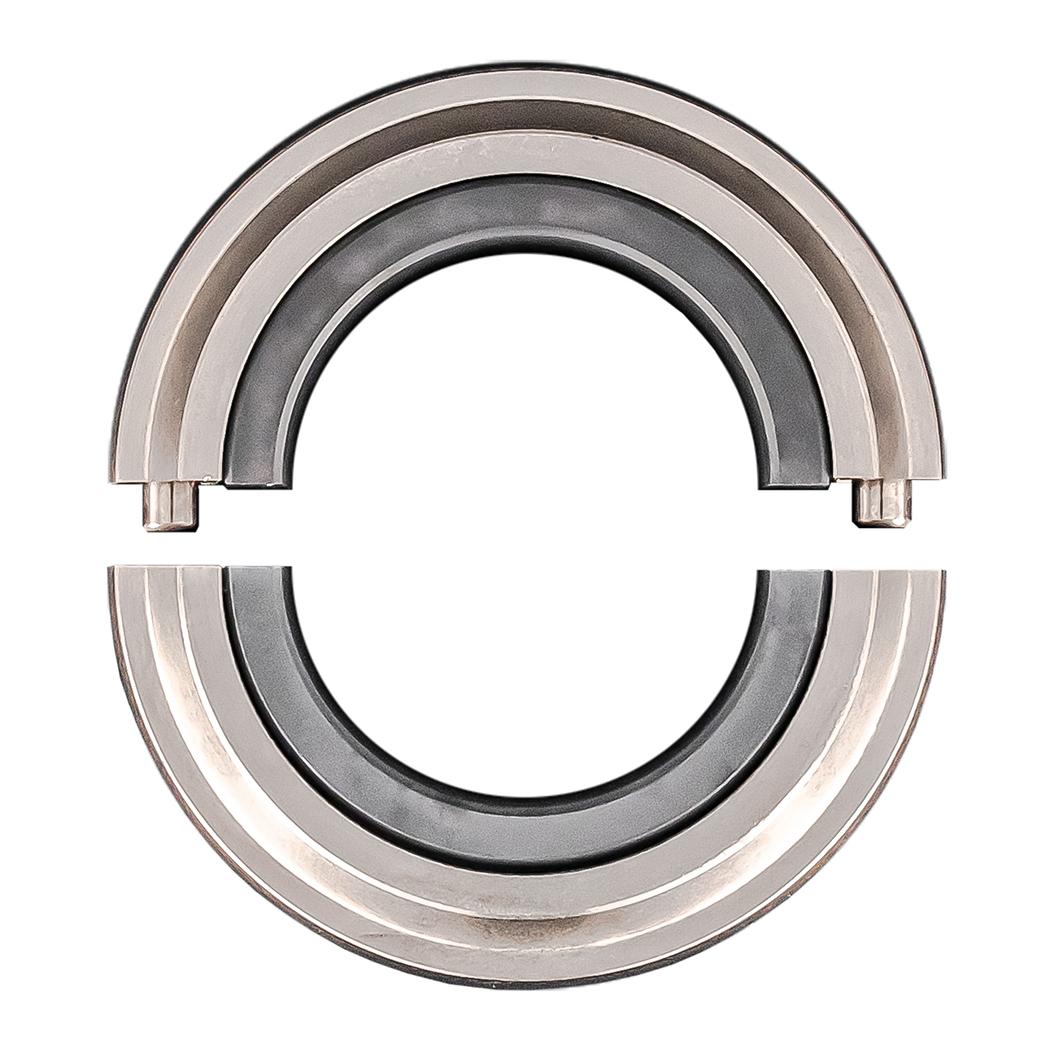

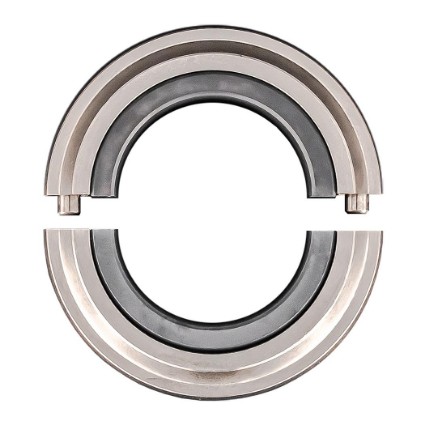

Steel Backed 750 °F Split Mounted Carbon Sleeve Bearing Insert
$763.40
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
MANUAL
Specifications:
metric
Attribute name
Attribute value
Tmax (F)
750
Shaft Size
2-7/16"
A (in)
1.938
C (in)
1.06
L (in)
3.436
S (in)
4.331
Static (lb)
7500
10 RPM (lb)
3760
50 RPM (lb)
2360
100 RPM (lb)
1180
200 RPM (lb)
590
Max Thrust Load (lb)
376
Weight(lbs)
3.07
Code
500225
PackageQTY
1
UOM
EA
Series
SSP
Bore (in)
2.446
Tmin (F)
-40
ShaftDia (in)
2.438
Material
HT750
Max Cap Load (lb)
2360
Tservice (F)
750
Split carbon-graphite sleeve placed in a split nickel-plated carbon steel backing ring. All mounted inserts will install into their respective split housings.It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.
