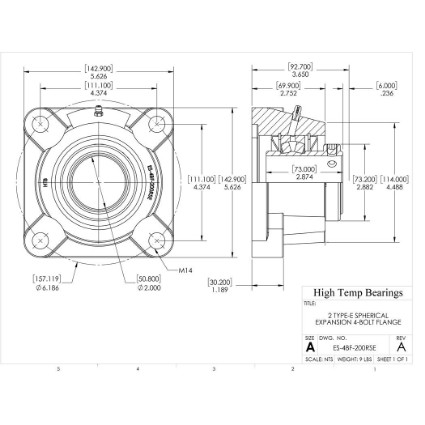

2" Type E Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty Type E 4 Bolt Flange: ES-4BF-200RSE
Heavy Duty Type E 4 Bolt Flange: ES-4BF-200RSE
Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$527.40
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
2"
A (mm)
142.9
B (mm)
69.9
C (mm)
92.7
D (mm)
73.2
E (mm)
111.1
Bolt
M14
H (mm)
30.2
J (mm)
114
K (mm)
157.2
L (mm)
73
Co (lb)
24730
Weight(lbs)
9
Code
105138
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
50.8
X (mm)
6
C (lb)
20230
Max RPM-Triple Lip Seal
2225
Max RPM-PTFE Seal
3180
Max RPM-Metal Labyrinth Seal
3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
