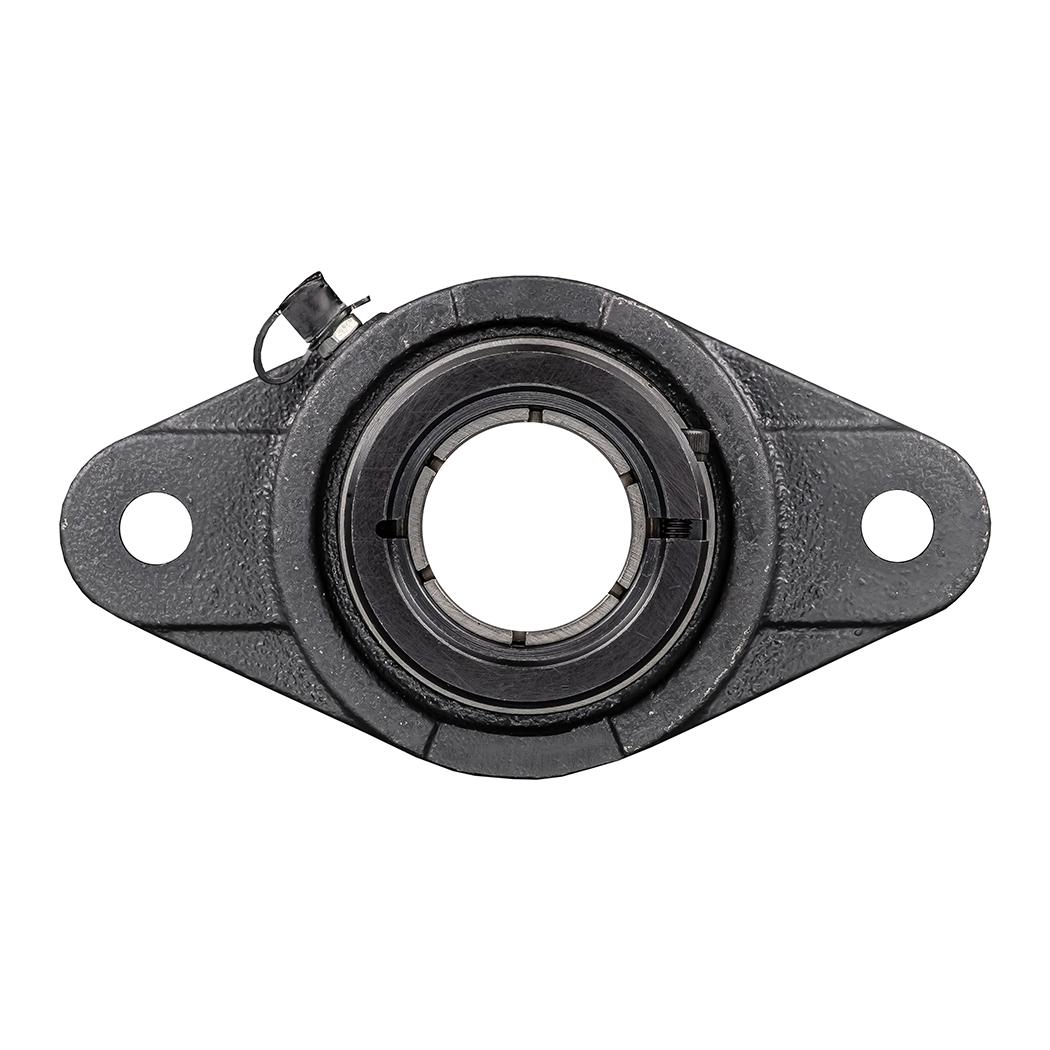

Concentric Locking 2 Bolt Flange Mounted Bearing
$26.60

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

This bearing has a concentric locking grip that uniformly distributes clamping pressure around the shaft for a secure hold. It provides better control for high speed and vibration than alternative mounting ball bearing configurations without marring the shaft. The outer race features an anti-rotation pin to minimize insert movement due to vibration and installs into a standard cast iron housing

2D and 3D files are available for download For drawings and 3D models, click on a part number.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code110604
Shaft Size1"
SeriesHLFL
Construction2-Bolt Flange
SealingStandard
End CapNone
CollarH-Lock
GreasableRe-lubricationGreasable
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

Dimensions

Attribute nameAttribute value
Bore (in)1
H (in)5.118
L (in)2.677
J (in)3.898
A2 (in)0.63
A1 (in)0.512
A (in)1.063
N (in)0.453
E (in)1.504
S (in)0.563

Mass

Attribute nameAttribute value
Weight(lbs)1.72

Mounting Information

Attribute nameAttribute value
Bolt7/16

Associated Products

Attribute nameAttribute value
Bearing InsertHL205-16
HousingFL205
