Cup and cone tapered roller bearing: 32228B

Cup and cone tapered roller bearing: 32228B

Cup and cone tapered roller bearing
$48.36

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410019
Shaft Size28mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

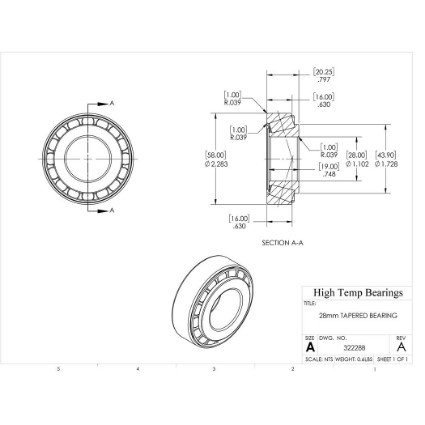

Dimensions

Attribute nameAttribute value
Bore (mm)28
D (mm)58
B (mm)20.25
d1 (mm)43.9
T (mm)19
P (mm)16
r1-r2 (mm)1
r3-r4 (mm)1
a (mm)16
t (mm)19

Abutment Dimensions

Attribute nameAttribute value
Da (mm)33
Damin-db (mm)46
damax (mm)33
dbmin (mm)35
Dbmin (mm)35
Camin (mm)3
Cbmin (mm)4
ramax (mm)1
rbmax (mm)1

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed9500
Nmax (RPM)Limiting speed12000
C (lb)Dynamic load capacity11668
C0 (lb)Static load capacity11241
Pu (lb)Fatigue load limit1236
eLimiting value0.57
YCalculation factor1.05
Y0Calculation factor0.6

Mass

Attribute nameAttribute value
Weight(lbs)0.6

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
