Heavy Duty Type E Piloted Flange: ES-FCF-80MMRSE

Heavy Duty Type E Piloted Flange: ES-FCF-80MMRSE

Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$940.97
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105226
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size80mm

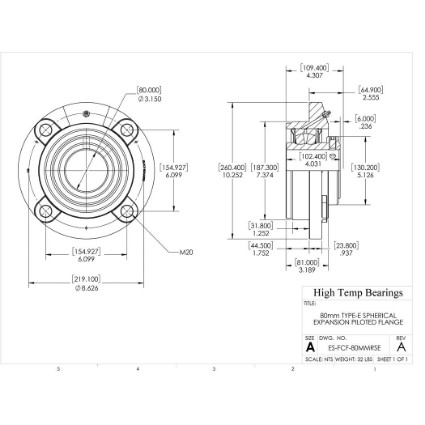

Dimensions
Attribute nameAttribute value
Bore (mm)80
A (mm)260.4
B (mm)81
C (mm)23.8
D (mm)130.2
E (mm)219.1
G (mm)64.9
H (mm)31.8
K (mm)44.5
L (mm)102.4
M (mm)154.9
T (mm)109.4
X (mm)6
Z (mm)187.3
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180
Mass
Attribute nameAttribute value
Weight(lbs)32
Mounting Information
Attribute nameAttribute value
Dismount Thread7/16-14 UNC
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
