Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6016-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6016-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$998.43
This product has a minimum quantity of 3

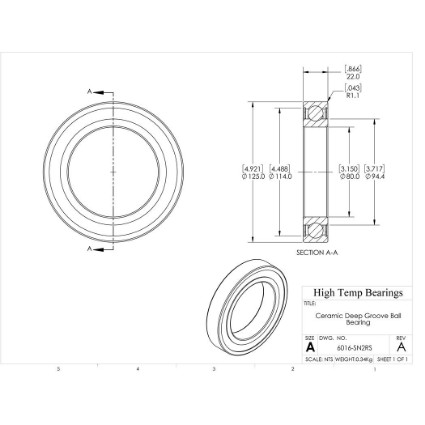

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)80
D (mm)125
B (mm)22
d1 (mm)94.4
D2 (mm)114
C (lb)2675
C0 (lb)2237
Nmax (RPM)4410
Weight(lbs)0.75
Code101380
PackageQTY1
UOMEA
C (kN)11.9
C0 (kN)9.95
Ra (mm)1
Da (mm)119
damin (mm)86
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
