1-1/4" Split 4 Bolt Flange Mounted 500 °F PTFE Bearing|High Temp Bearings

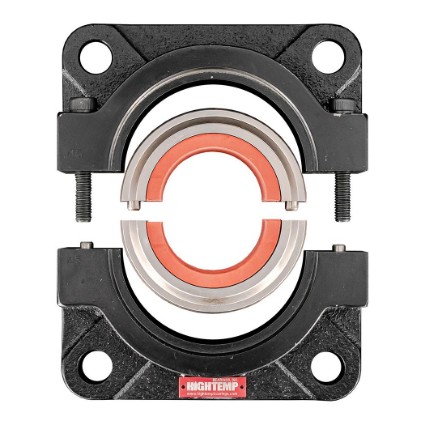

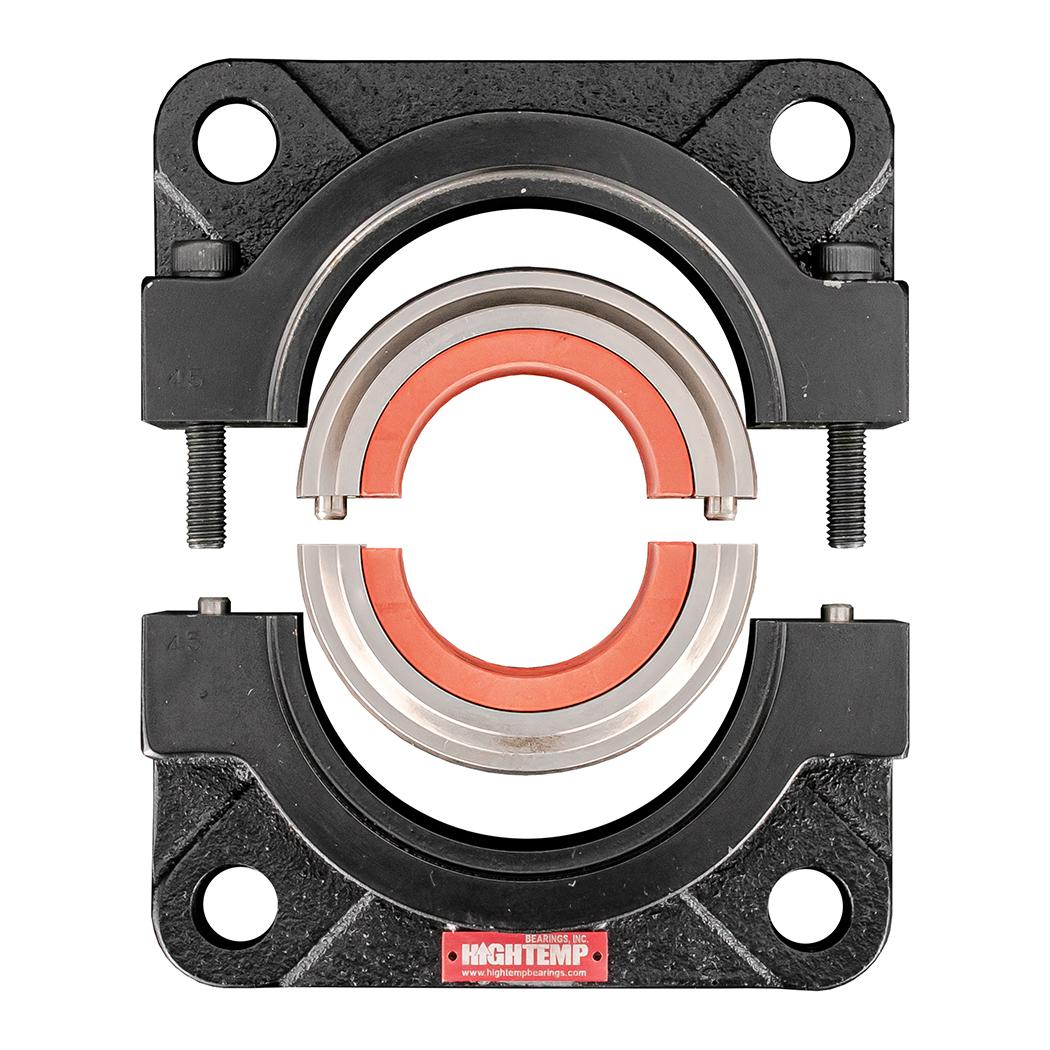

Picture of Split 4-Bolt Flange NT600 Composite Sleeve Bearing

4-Bolt Flange 500 °F Split Mounted PTFE Composite Sleeve Bearing

$887.25

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Fully split, self-aligning, maintenance-free, PTFE composite sleeve is a proven, simple, and reliable bearing that reduces torque by up to 100x and has up to 10x more wear life than a carbon sleeve bearing. They run silently, fully self-lubricate, dampen vibration, are corrosion-proof, and maintenance-free. Ideal for use in hot, extreme cold, and corrosive applications under 100 RPM. It is dimensionally interchangeable with a solid mounted bearing.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		440049
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SSP
Construction		Split 4-Bolt Flange
Shaft Size		1-1/4"
Material		NT600

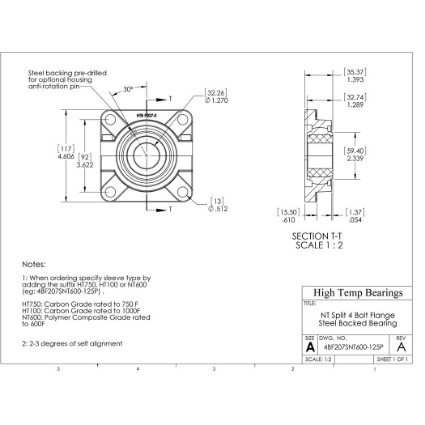

Dimensions

Attribute name		Attribute value
Bore (in)		1.27
ShaftDia (in)		1.25
A (in)		1.289
B (in)		4.66
C (in)		1.393
D (in)		3.622
F (in)		0.512
H (in)		0.61
J (in)		0.54
L (in)		2.339

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	810
10 RPM (lb)	Load capacity at 10 RPM	810
50 RPM (lb)	Load capacity at 50 RPM	810
100 RPM (lb)	Load capacity at 100 RPM	810
200 RPM (lb)	Load capacity at 200 RPM	810
Max Cap Load (lb)		810
Max Thrust Load (lb)		81

Mass

Attribute name		Attribute value
Weight(lbs)		4

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500

Associated Products

Attribute name		Attribute value
Bearing Insert		SSP207-NT6-125
