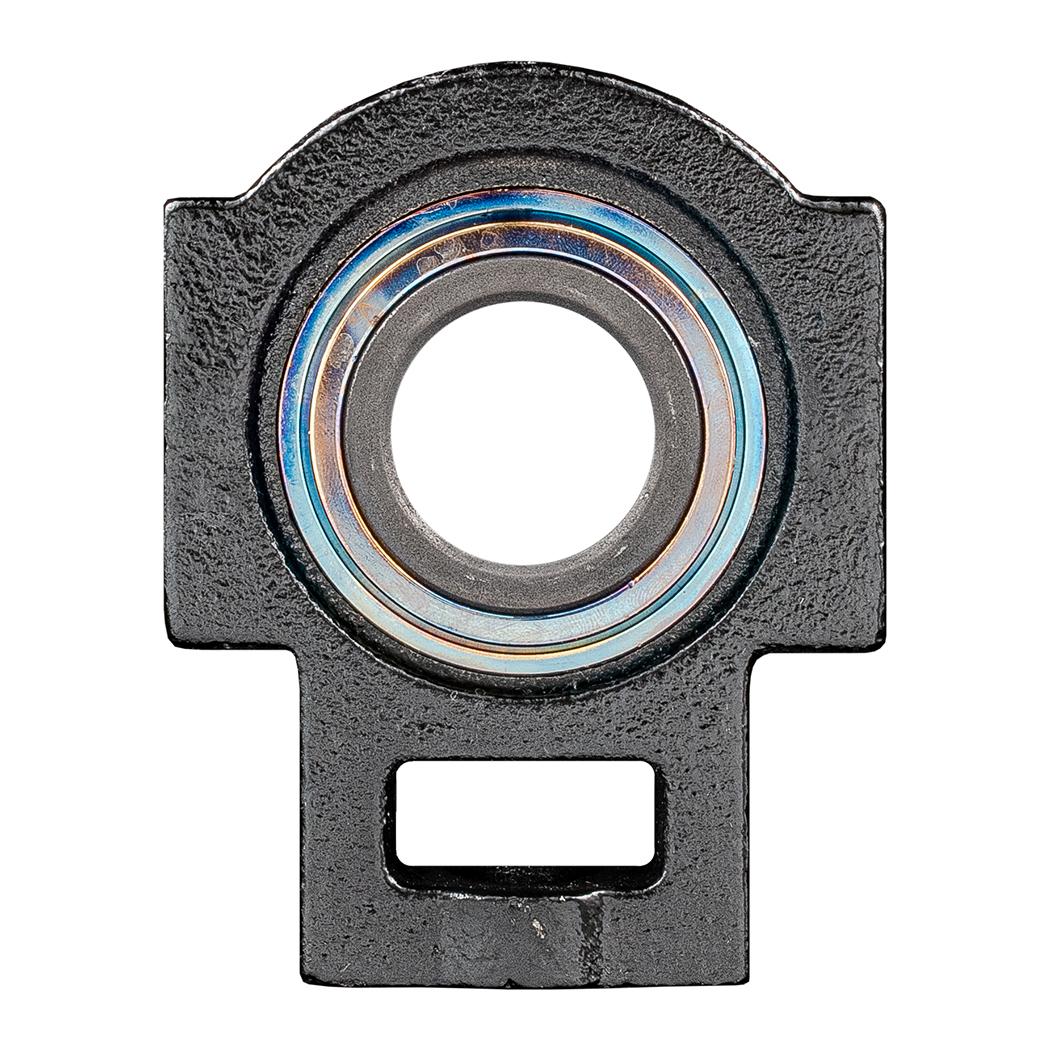

Take-up Flange HT750 Carbon Sleeve Bearing: UCT210HT750-50

Take-up Flange HT750 Carbon Sleeve Bearing: UCT210HT750-50

Take-up, HT750, Solid
$286.90
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionTake Up
Tmax (F)750
Bore (in)1.977
A (in)1.459
B (in)3.386
C (in)1.457
D (in)1.142
F (in)0.748
H (in)4.66
J (in)5.866
L (in)2.861
M (in)3.543
S1 (in)3.976
S2 (in)0.689
Bearing InsertHR210-HT7-50
Static (lb)4700
Weight(lbs)5.4
Code104451
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.969
Tmin (F)-40
MaterialHT750
10 RPM (lb)2360
50 RPM (lb)1860
100 RPM (lb)930
200 RPM (lb)465
Max Cap Load (lb)1920
Max Thrust Load (lb)236
Tservice (F)750
Shaft size50mm
