5/8" 500 °F PTFE Take Up Bearing|High Temp Bearings

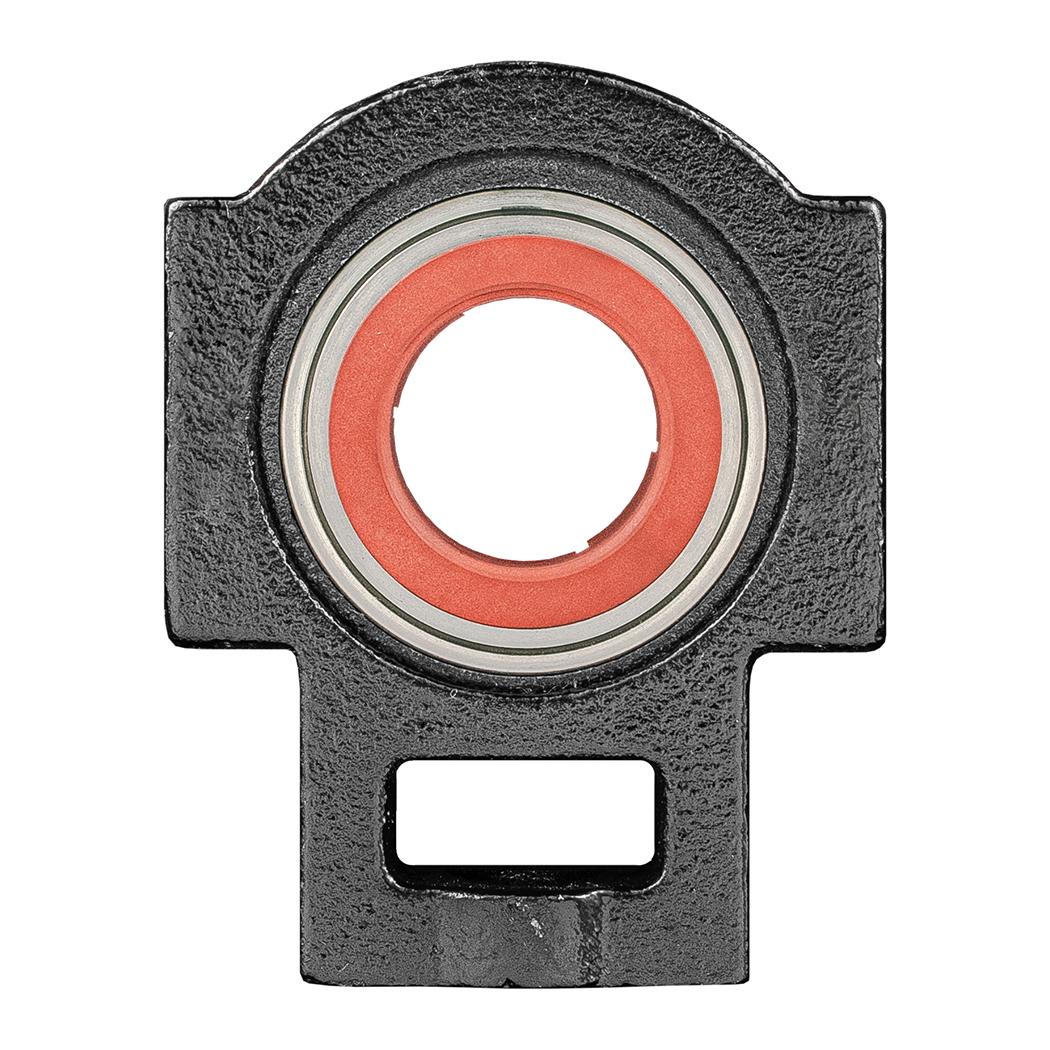

Picture of Take-up Flange NT600 Composite Sleeve Bearing

Take-up Flange 500 °F Solid Mounted PTFE Composite Sleeve Bearing

$275.06

Qty:

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

Self-aligning, maintenance-free, PTFE composite sleeve is a proven, simple, and reliable bearing that reduces torque by up to 100x and has up to 10x more wear life than a carbon sleeve bearing. They run silently, fully self-lubricate, dampen vibration, are corrosion-proof, and maintenance-free. Ideal for use in hot, extreme cold, and corrosive applications under 100 RPM.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		104397
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Construction		Take Up
Shaft Size		5/8"
Material		NT600

Dimensions

Attribute name		Attribute value
Bore (in)		0.645
ShaftDia (in)		0.625
A (in)		1.55
B (in)		2.8
C (in)		0.827
D (in)		0.748
F (in)		0.63
H (in)		3.54
J (in)		3.71
L (in)		1.428
M (in)		2.42
S1 (in)		2.992
S2 (in)		0.531

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	339
10 RPM (lb)	Load capacity at 10 RPM	339
50 RPM (lb)	Load capacity at 50 RPM	339
100 RPM (lb)	Load capacity at 100 RPM	339
200 RPM (lb)	Load capacity at 200 RPM	339
Max Cap Load (lb)		339
Max Thrust Load (lb)		34

Mass

Attribute name		Attribute value
Weight(lbs)		1.8

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500

Associated Products

Attribute name		Attribute value
Bearing Insert		HR204-NT6-062
