Medium Duty 4-Bolt Flange: UCFX07-22

Medium Duty 4-Bolt Flange: UCFX07-22

Medium Duty Setscrew Locking 4-Bolt Flange Mounted Ball Bearing

$119.93

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to heavy loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (B-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		100626
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		UCX
Construction		4-Bolt Flange
Shaft Size		1-3/8"
Sealing		Standard
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

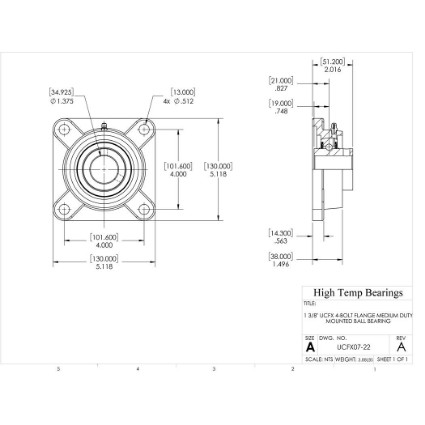

Dimensions

Attribute name		Attribute value
Bore (in)		1.375
L (in)		5.118
J (in)		4
A2 (in)		0.827
A1 (in)		0.563
A (in)		1.496
E (in)		2.157
S (in)		0.748
N (in)		0.512

Mass

Attribute name		Attribute value
Weight(lbs)		3.88

Mounting Information

Attribute name		Attribute value
Bolt		1/2

Associated Products

Attribute name		Attribute value
Bearing Insert		UCX07-22
Housing		FX07
