Medium Duty 4-Bolt Flange: UCFX06-20

Medium Duty 4-Bolt Flange: UCFX06-20

Medium Duty Setscrew Locking 4-Bolt Flange Mounted Ball Bearing

$100.56

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to heavy loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (B-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease.

Free Ground Shipping on orders over $99 use Code "SHIPFREE" at checkout

Attribute name		Attribute value
Daily Shipping Deal		SHIPFREE

Product Information

Attribute name		Attribute value
Code		100320
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		UCX
Construction		4-Bolt Flange
Shaft Size		1-1/4"
Sealing		Standard
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

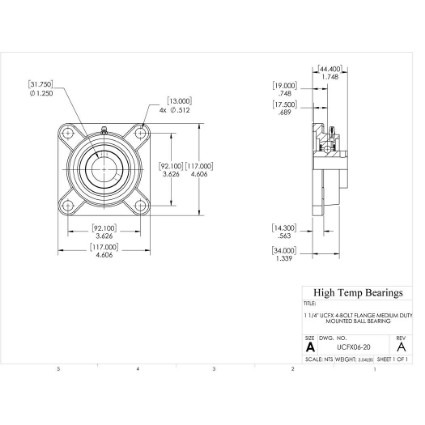

Dimensions

Attribute name		Attribute value
Bore (in)		1.25
L (in)		4.663
J (in)		3.626
A2 (in)		0.748
A1 (in)		0.563
A (in)		1.339
E (in)		1.748
S (in)		0.689
N (in)		0.512

Mass

Attribute name		Attribute value
Weight(lbs)		3.04

Mounting Information

Attribute name		Attribute value
Bolt		1/2

Associated Products

Attribute name		Attribute value
Bearing Insert		UC207-20
Housing		FX06
