IP69K Stainless Steel 2 Bolt Flange Food Grade Bearing: SUCFL208 IP69K

IP69K Stainless Steel 2 Bolt Flange Food Grade Bearing: SUCFL208 IP69K

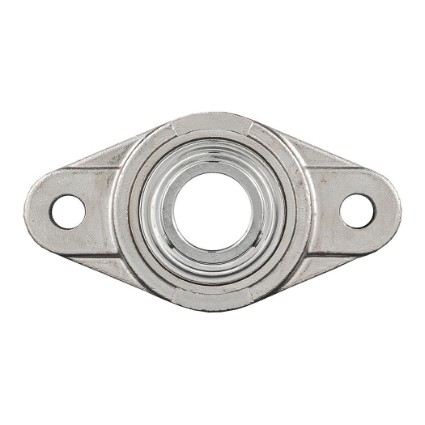

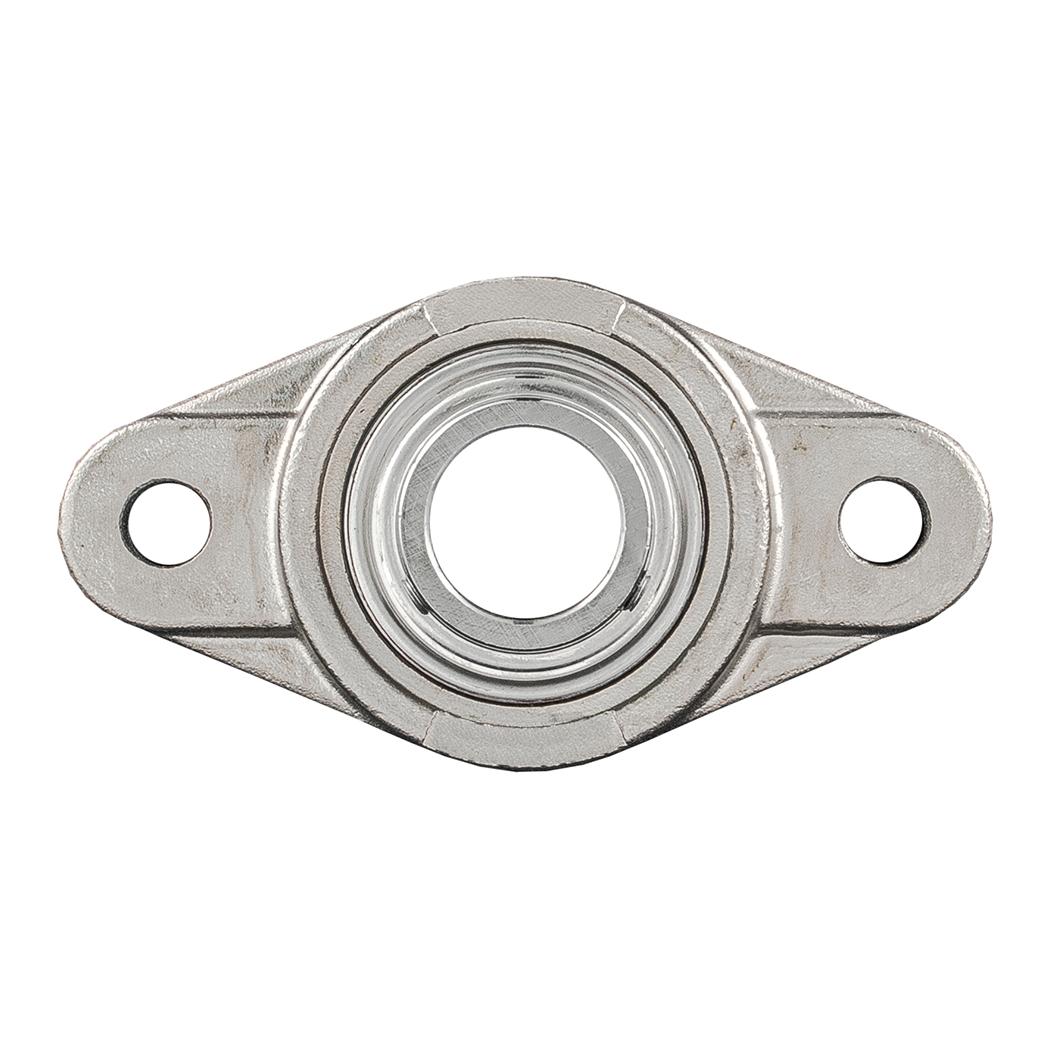

IP69K Stainless Steel 2 Bolt Flange Mounted Food Bearing
$287.99
EA

checkbox icon This item typically ship in 1-4 weeks.

Specifications:
Description
For moderate to heavy loads, speed, and vibration. All bearings are IP69K rated for dust tight protection, close range high pressure and temperature washdown or steam cleaning. Lubricated for life with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease to eliminate lubrication holes, grease zerks, and other potential areas for contamination intrusion. Ideal for food, poultry, meat, pharmaceutical manufacturing or any environment subject caustic washdown or regular temporary submersion. 304 Stainless steel housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals. They are also very strong and useful for carrying the high stress found near drives, belt and chain tensioners.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code150295
Shaft Size40mm
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesSUC-IP69K
Construction2-Bolt Flange
SealingIP69K
End CapNone
Dimensions
Attribute nameAttribute value
Bore (in)1.5748
H (in)6.7323
L (in)3.937
J (in)5.6575
A2 (in)0.8268
A1 (in)0.5512
A (in)1.4173
N (in)0.5118
E (in)2
S (in)0.748
Mass
Attribute nameAttribute value
Weight(lbs)3.7
Mounting Information
Attribute nameAttribute value
Bolt7/16
Associated Products
Attribute nameAttribute value
Bearing InsertSUC208 IP69K
HousingSFL208
