Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC215

Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC215

Stainless Steel Setscrew Locking Ball Bearing Insert
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

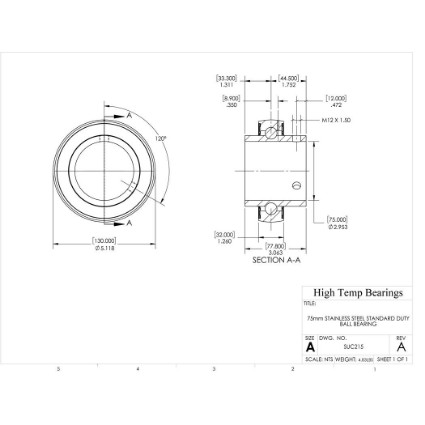

CAD
Specifications:
Attribute nameAttribute value
SeriesSUC
Shaft Size75mm
D (in)5.1181
B (in)3.63
C (in)1.2598
S (in)1.311
h (in)0.354
S1(in)1.752
G (in)0.4724
ds7/16-20 UNF
C (lb)14620
C0 (lb)10540
Weight(lbs)4.83
Code103360
PackageQTY1
UOMEA
Bore (in)2.9528
Dynamic Capacity (lb)14620
Static Capacity (lb)10540
Tmax (F)248
Tmin (F)-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
