Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC213

Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC213

Stainless Steel Setscrew Locking Ball Bearing Insert
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

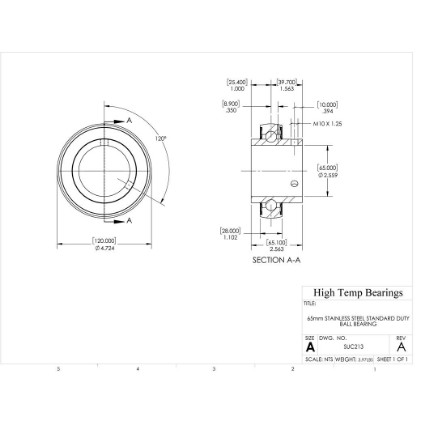

CAD
Specifications:
Attribute nameAttribute value
SeriesSUC
Shaft Size65mm
D (in)4.7244
B (in)2.563
C (in)1.124
S (in)1
h (in)0.354
S1(in)1.563
G (in)0.3937
ds3/8-24 UNF
C (lb)12400
C0 (lb)8760
Weight(lbs)3.78
Code103356
PackageQTY1
UOMEA
Bore (in)2.5591
Dynamic Capacity (lb)12400
Static Capacity (lb)8760
Tmax (F)248
Tmin (F)-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
