Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC212-39

Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC212-39

Stainless Steel Setscrew Locking Ball Bearing Insert
$342.43
EA

checkbox icon This item typically ship in 1-4 weeks.

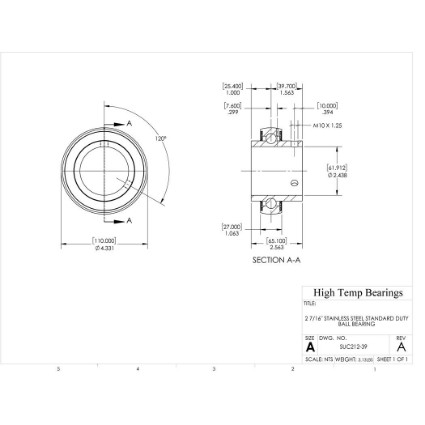

CAD
Specifications:
Attribute nameAttribute value
SeriesSUC
Shaft Size2-7/16"
D (in)4.337
B (in)2.563
C (in)1.63
S (in)1
h (in)0.2992
S1(in)1.563
G (in)0.3937
ds3/8-24 UNF
C (lb)11500
C0 (lb)7490
Weight(lbs)3.2
Code103355
PackageQTY1
UOMEA
Bore (in)2.4375
Dynamic Capacity (lb)11500
Static Capacity (lb)7490
Tmax (F)248
Tmin (F)-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
