Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC211-32

Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC211-32

Stainless Steel Setscrew Locking Ball Bearing Insert
$272.91
EA

checkbox icon This item typically ship in 1-4 weeks.

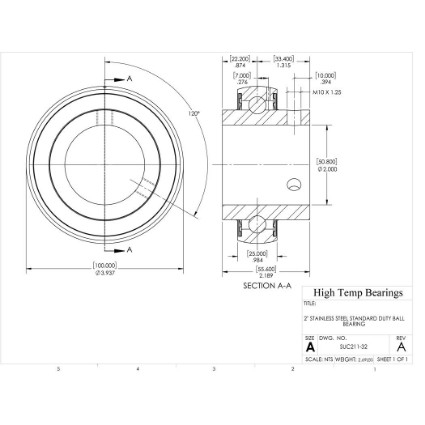

CAD
Specifications:
Attribute nameAttribute value
SeriesSUC
Shaft Size2"
D (in)3.937
B (in)2.189
C (in)0.9843
S (in)0.874
h (in)0.2756
S1(in)1.315
G (in)0.3937
ds3/8-24 UNF
C (lb)9490
C0 (lb)6440
Weight(lbs)2.8
Code103349
PackageQTY1
UOMEA
Bore (in)2
Dynamic Capacity (lb)9490
Static Capacity (lb)6440
Tmax (F)248
Tmin (F)-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
