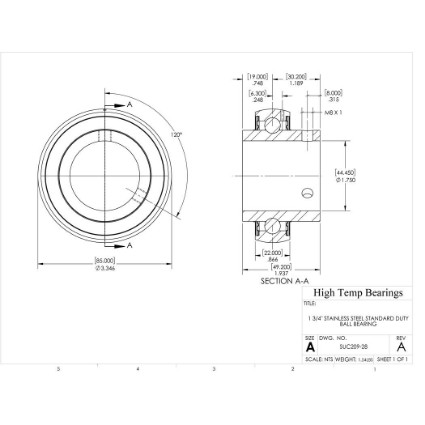

1-3/4" Stainless Mounted Set Screw Bearing Insert
Print Page
Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC209-28
Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC209-28
Stainless Steel Setscrew Locking Ball Bearing Insert
$167.96
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
MANUAL
Specifications:
metric
Attribute name
Attribute value
Series
SUC
Shaft Size
1-3/4"
D (in)
3.3465
B (in)
1.937
C (in)
0.8661
S (in)
0.748
h (in)
0.248
S1(in)
1.189
G (in)
0.315
ds
5/16-24 UNF
C (lb)
7110
C0 (lb)
4460
Weight(lbs)
1.54
Code
103344
PackageQTY
1
UOM
EA
Bore (in)
1.75
Dynamic Capacity (lb)
7110
Static Capacity (lb)
4460
Tmax (F)
248
Tmin (F)
-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
