Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC207-22

Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC207-22

Stainless Steel Setscrew Locking Ball Bearing Insert
$124.16
EA

checkbox icon This item typically ship in 1-4 weeks.

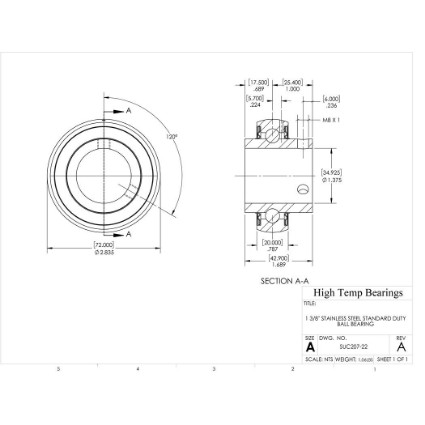

CAD
Specifications:
Attribute nameAttribute value
SeriesSUC
Shaft Size1-3/8"
D (in)2.8346
B (in)1.689
C (in)0.7874
S (in)0.689
h (in)0.2244
S1(in)1
G (in)0.2362
ds5/16-24 UNF
C (lb)5535
C0 (lb)3340
Weight(lbs)1.06
Code103337
PackageQTY1
UOMEA
Bore (in)1.375
Dynamic Capacity (lb)5535
Static Capacity (lb)3340
Tmax (F)248
Tmin (F)-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
