Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC204-10

Stainless Steel, Setscrew Locking, Ball Bearing Insert: SUC204-10

Stainless Steel Setscrew Locking Ball Bearing Insert
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

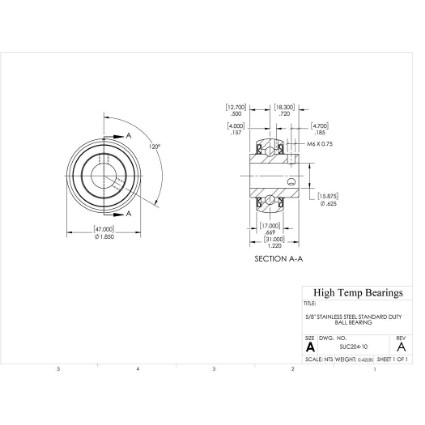

CAD
Specifications:
Attribute nameAttribute value
SeriesSUC
Shaft Size5/8"
D (in)1.854
B (in)1.225
C (in)0.6693
S (in)0.5
h (in)0.1575
S1(in)0.725
G (in)0.185
ds1/4-28 UNF
C (lb)2740
C0 (lb)1600
Weight(lbs)0.42
Code103326
PackageQTY1
UOMEA
Bore (in)0.625
Dynamic Capacity (lb)2740
Static Capacity (lb)1600
Tmax (F)248
Tmin (F)-10
Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
