20mm Plastic Tap Base Pillow Block Mounted Food Bearing.High Temp Bearings

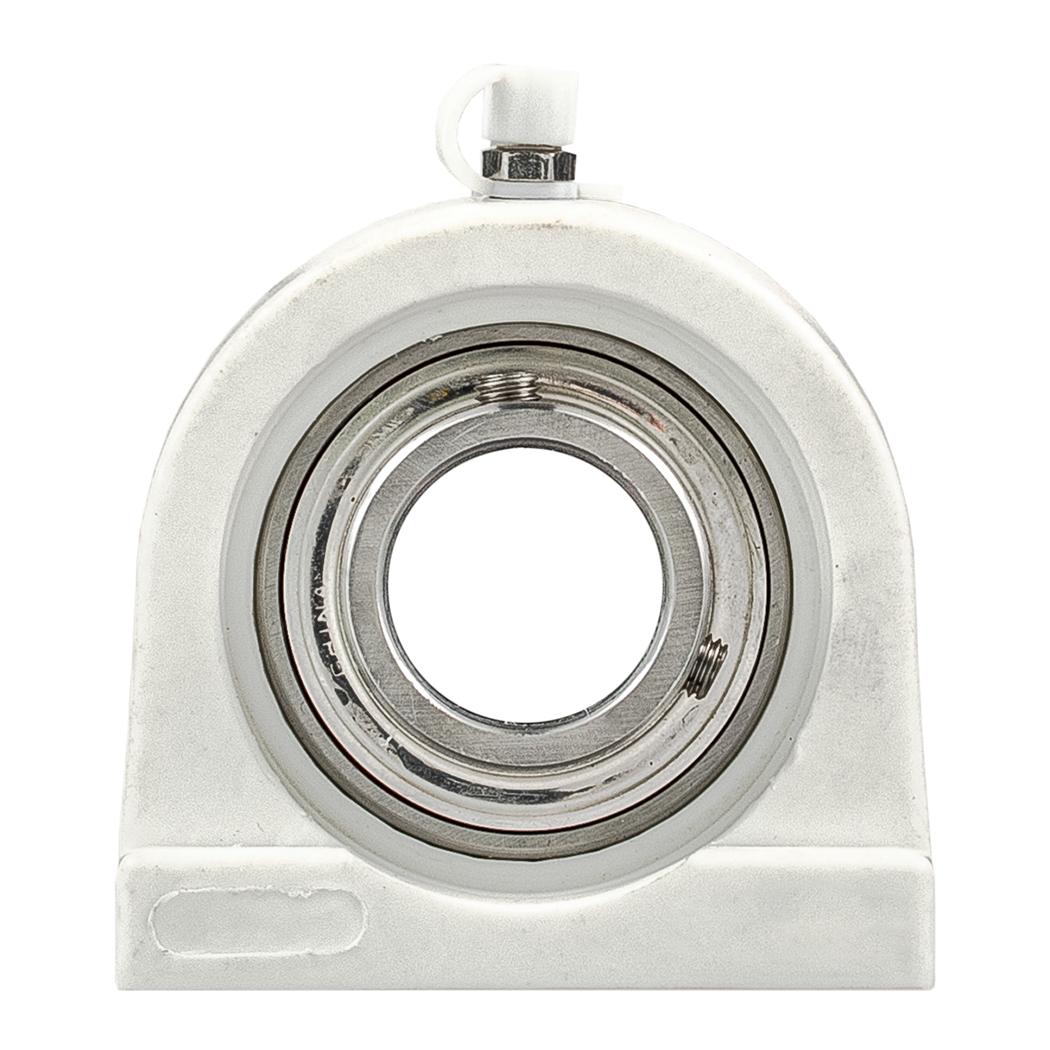

Picture of Plastic Tap Base Pillow Block Food Grade Bearing

Plastic Tap Base Pillow Block Mounted Food Bearing

$69.11

Qty:

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

For moderate loads, speed, and vibration. All bearings are equipped with close tolerance stainless steel metal shields, an internal silicone contact seal (B-type), and factory lubricated with a NSF H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminum Complex thickened grease. Suitable for general use in food processing with moderate washdown requirements and can be PM'd. Thermoplastic housings provide excellent chemical and corrosion resistance capable of resisting many acids, fats and most food and beverage processing chemicals.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		160198
Shaft Size		20mm
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		TP
Construction		Tap Base
Sealing		Standard
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

Dimensions

Attribute name		Attribute value
Bore (in)		0.7874
H (in)		1.311
L (in)		2.874
J (in)		2
H1 (in)		0.512
H2 (in)		2.563
A (in)		1.5
E (in)		1.221
S (in)		0.5

Mass

Attribute name		Attribute value
Weight(lbs)		0.4

Mounting Information

Attribute name		Attribute value
Bolt		3/18-16

Associated Products

Attribute name		Attribute value
Bearing Insert		SUC204
Housing		PTB204
