Picture of NT600 Split Steel Backed Composite Sleeve Bearing
Picture of NT600 Split Steel Backed Composite Sleeve Bearing
Picture of NT600 Split Steel Backed Composite Sleeve Bearing
Installed NT bearing
Picture of NT600 Split Steel Backed Composite Sleeve Bearing

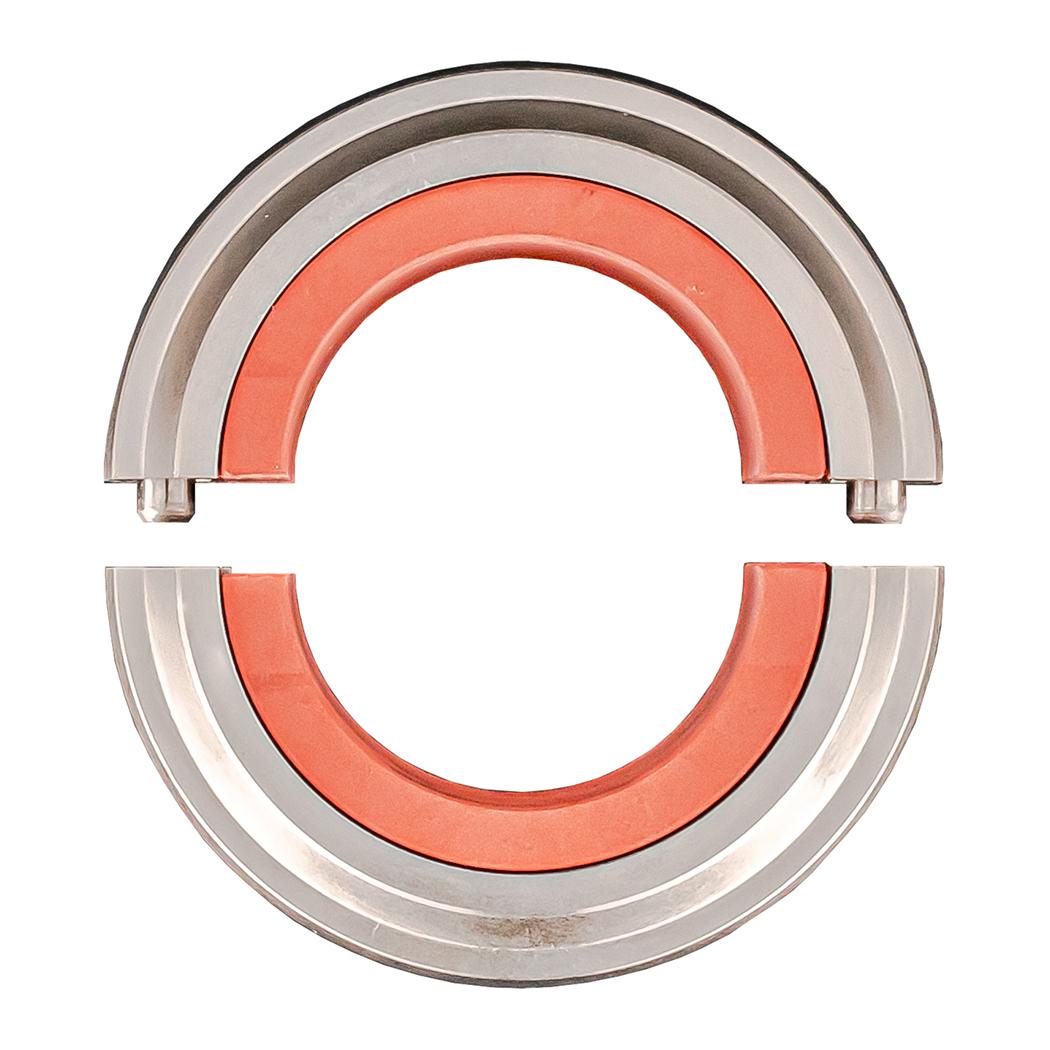

Steel Backed 500 °F Split Mounted Polymer Sleeve Bearing Insert
$1,331.89

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

Split PTFE composite sleeve in a split nickel-plated carbon steel backing ring.. All mounted inserts will install into their respective split housings. All of our mounted sleeve bearing inserts use our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code500257
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesSSP
Shaft Size90mm
MaterialNT600

Dimensions

Attribute nameAttribute value
Bore (in)3.566
ShaftDia (in)3.543
A (in)2.5
C (in)1.231
L (in)4.669
S (in)5.118

Calculation Data

Attribute nameAttribute value
Static (lb)Load capacity intermittent use4441
10 RPM (lb)Load capacity at 10 RPM4441
50 RPM (lb)Load capacity at 50 RPM4441
100 RPM (lb)Load capacity at 100 RPM4441
200 RPM (lb)Load capacity at 200 RPM888
Max Cap Load (lb)4151
Max Thrust Load (lb)444

Mass

Attribute nameAttribute value
Weight(lbs)4.48

Safe Loads

Attribute nameAttribute value
Tmax (F)500
Tmin (F)-400
Tservice (F)Max use temperature in air500
