Sealed Stainless Steel Deep Groove Ball Bearing: SS 6303-2RS1

Sealed Stainless Steel Deep Groove Ball Bearing: SS 6303-2RS1

Deep Groove, Single Row, Stainless Steel, Sealed Ball Bearing
$41.00
EA

checkbox icon This item typically ship in 1-4 weeks.

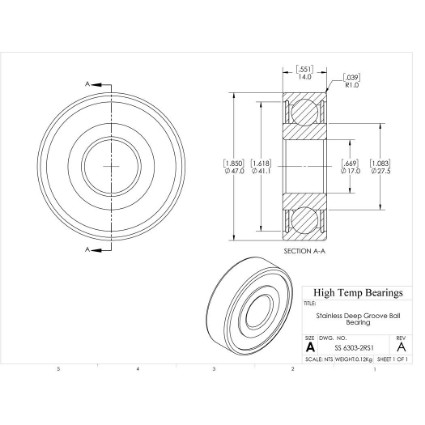

CAD
Specifications:
Attribute nameAttribute value
SealsSeals
Shaft Size17mm
D (mm)47
B (mm)14
d1 (mm)27.5
D2 (mm)41.1
C (lb)2563
C0 (lb)1416
Pu (lb)62
Nmax (RPM)11000
Weight(lbs)0.26
Code100172
PackageQTY1
UOMEA
Series6300
Bore (mm)17
C (kN)11.4
C0 (kN)6.3
Pu (kN)0.275
Ra (mm)1
Da (mm)41.2
damin (mm)22.8
kr30
fo12
r (mm)1
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Seals
DutyStainless
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings.
