Open Stainless Steel Deep Groove Ball Bearing: SS 6302

Open Stainless Steel Deep Groove Ball Bearing: SS 6302

Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
$27.26
EA

checkbox icon This item typically ship in 1-4 weeks.

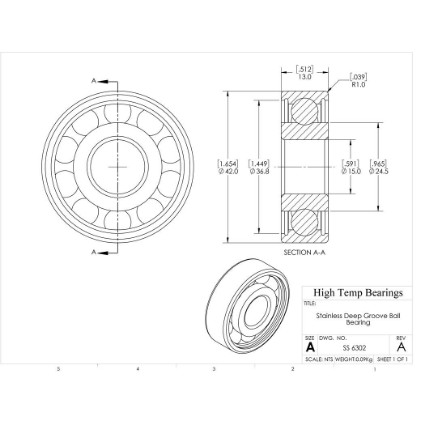

CAD
Specifications:
Attribute nameAttribute value
SealsNone
Shaft Size15mm
D (mm)42
B (mm)13
d1 (mm)24.5
D2 (mm)36.8
C (lb)2149
C0 (lb)1169
Pu (lb)51
Nr (RPM)38000
Nmax (RPM)24000
Weight(lbs)0.19
Code100169
PackageQTY1
UOMEA
Series6300
Bore (mm)15
C (kN)9.56
C0 (kN)5.2
Pu (kN)0.228
Ra (mm)1
Da (mm)36.2
damin (mm)20.8
kr30
fo12
r (mm)1
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Open
DutyStainless
Material440C
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.
