Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
$54.90

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code100157
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series6200
Construction248F Open
DutyStainless
SealsNone
Shaft Size35mm
Material440C

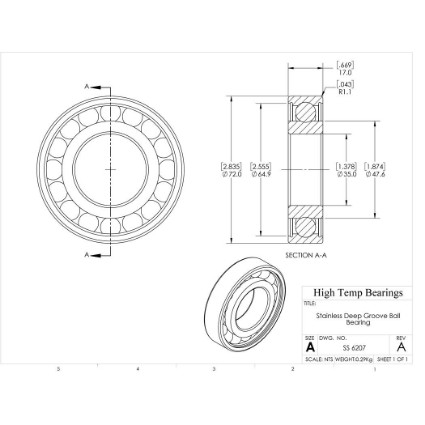

Dimensions

Attribute nameAttribute value
Bore (mm)35
D (mm)72
B (mm)17
r (mm)1.1
D2 (mm)64.9
d1 (mm)47.6

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1.1
Da (mm)65
damin (mm)42

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed20000
Nmax (RPM)Limiting speed13000
krMinimum radial load factor25
foCalculation factor14
C (lb)Dynamic load capacity4856
C0 (lb)Static load capacity3282
Pu (lb)Fatigue load limit147

Mass

Attribute nameAttribute value
Weight(lbs)0.64

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
