Open Stainless Steel Deep Groove Ball Bearing: SS 6200

Open Stainless Steel Deep Groove Ball Bearing: SS 6200

Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
$14.70
EA

checkbox icon This item typically ship in 1-4 weeks.

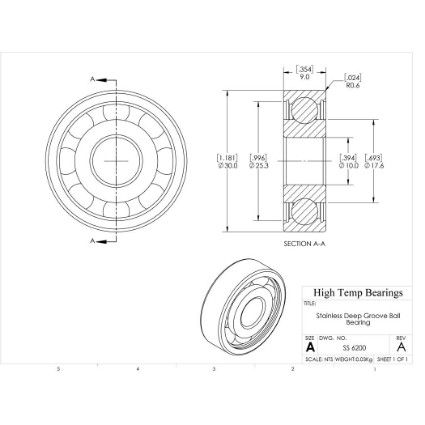

CAD
Specifications:
Attribute nameAttribute value
SealsNone
Shaft Size10mm
D (mm)30
B (mm)9
d1 (mm)17.6
D2 (mm)25.3
C (lb)951
C0 (lb)513
Pu (lb)22
Nr (RPM)56000
Nmax (RPM)34000
Weight(lbs)0.07
Code100143
PackageQTY1
UOMEA
Series6200
Bore (mm)10
C (kN)4.23
C0 (kN)2.28
Pu (kN)0.1
Ra (mm)0.6
Da (mm)25.8
damin (mm)14.2
kr25
fo13
r (mm)0.6
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Open
DutyStainless
Material440C
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.
