Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
$27.97

checkbox icon This item typically ship in 1-4 weeks.

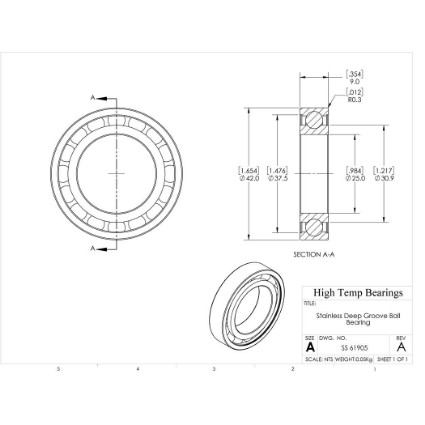

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code100141
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series61900
Construction248F Open
DutyStainless
SealsNone
Shaft Size25mm
Material440C

Dimensions

Attribute nameAttribute value
Bore (mm)25
D (mm)42
B (mm)9
r (mm)0.3
D2 (mm)37.5
d1 (mm)30.9

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)0.3
Da (mm)40
damin (mm)27

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed36000
Nmax (RPM)Limiting speed22000
krMinimum radial load factor20
foCalculation factor15
C (lb)Dynamic load capacity1331
C0 (lb)Static load capacity933
Pu (lb)Fatigue load limit43

Mass

Attribute nameAttribute value
Weight(lbs)0.1

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
