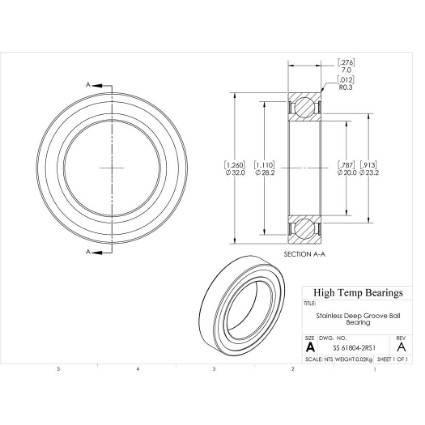

Sealed Stainless Steel Deep Groove Ball Bearing: SS 61804-2RS1

Sealed Stainless Steel Deep Groove Ball Bearing: SS 61804-2RS1

Deep Groove, Single Row, Stainless Steel, Sealed Ball Bearing
$29.81
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Attribute nameAttribute value
SealsSeals
Shaft Size20mm
D (mm)32
B (mm)7
d1 (mm)23.2
D2 (mm)28.2
C (lb)760
C0 (lb)504
Pu (lb)23
Nmax (RPM)13000
Weight(lbs)0.04
Code100134
PackageQTY1
UOMEA
Series61800
Bore (mm)20
C (kN)3.38
C0 (kN)2.24
Pu (kN)0.104
Ra (mm)0.3
Da (mm)30
damin (mm)22
kr15
fo15
r (mm)0.3
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Seals
DutyStainless
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings.
