Open Stainless Steel Deep Groove Ball Bearing: SS 61804

Open Stainless Steel Deep Groove Ball Bearing: SS 61804

Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

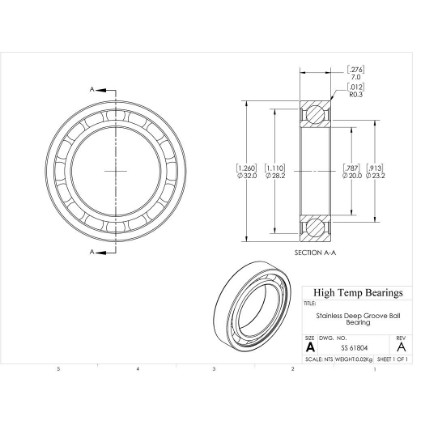

CAD
Specifications:
Attribute nameAttribute value
SealsNone
Shaft Size20mm
D (mm)32
B (mm)7
d1 (mm)23.2
D2 (mm)28.2
C (lb)760
C0 (lb)504
Pu (lb)23
Nr (RPM)45000
Nmax (RPM)28000
Weight(lbs)0.04
Code100133
PackageQTY1
UOMEA
Series61800
Bore (mm)20
C (kN)3.38
C0 (kN)2.24
Pu (kN)0.104
Ra (mm)0.3
Da (mm)30
damin (mm)22
kr15
fo15
r (mm)0.3
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Open
DutyStainless
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.
