Open Stainless Steel Deep Groove Ball Bearing: SS 61802

Open Stainless Steel Deep Groove Ball Bearing: SS 61802

Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

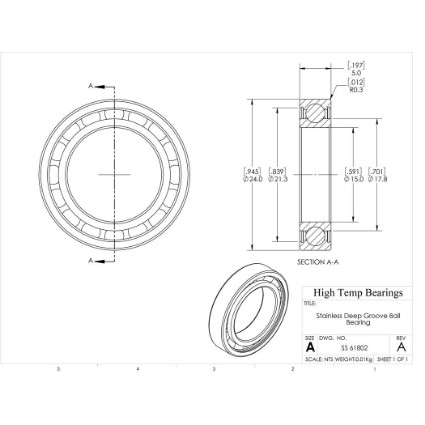

CAD
Specifications:
Attribute nameAttribute value
SealsNone
Shaft Size15mm
D (mm)24
B (mm)5
d1 (mm)17.8
D2 (mm)21.3
C (lb)292
C0 (lb)175
Pu (lb)8
Nr (RPM)60000
Nmax (RPM)38000
Weight(lbs)0.02
Code100132
PackageQTY1
UOMEA
Series61800
Bore (mm)15
C (kN)1.3
C0 (kN)0.78
Pu (kN)0.034
Ra (mm)0.3
Da (mm)22
damin (mm)17
kr15
fo10
r (mm)0.3
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Open
DutyStainless
Material440C
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.
