Sealed Stainless Steel Deep Groove Ball Bearing: SS 61800-2RS1

Sealed Stainless Steel Deep Groove Ball Bearing: SS 61800-2RS1

Deep Groove, Single Row, Stainless Steel, Sealed Ball Bearing
$8.98
EA

checkbox icon This item typically ship in 1-4 weeks.

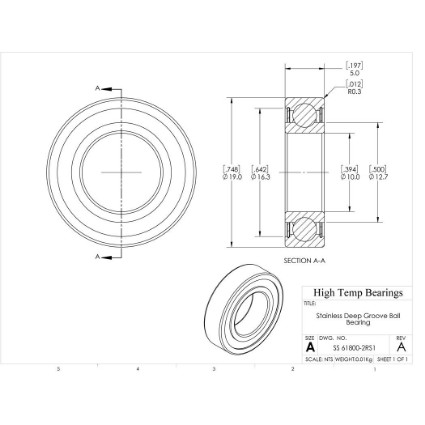

CAD
Specifications:
Attribute nameAttribute value
SealsSeals
Shaft Size10mm
D (mm)19
B (mm)5
d1 (mm)12.7
D2 (mm)16.3
C (lb)256
C0 (lb)128
Pu (lb)6
Nmax (RPM)22000
Weight(lbs)0.01
Code100130
PackageQTY1
UOMEA
Series61800
Bore (mm)10
C (kN)1.14
C0 (kN)0.57
Pu (kN)0.025
Ra (mm)0.3
Da (mm)17
damin (mm)12
kr15
fo9.4
r (mm)0.3
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Seals
DutyStainless
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings.
