Picture of 10mm 61800 Stainless Steel Deep Groove Open Bearing
Deep Groove, Single Row, Stainless Steel, Open Ball Bearing
$10.18
This product has a minimum quantity of 2

checkbox icon This item typically ship in 1-4 weeks.

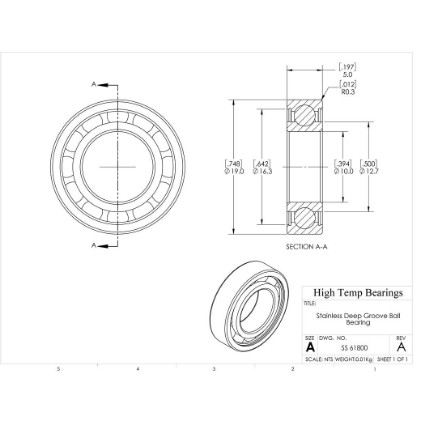

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code100129
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series61800
Construction248F Open
DutyStainless
SealsNone
Shaft Size10mm
Material440C

Dimensions

Attribute nameAttribute value
Bore (mm)10
D (mm)19
B (mm)5
r (mm)0.3
D2 (mm)16.3
d1 (mm)12.7

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)0.3
Da (mm)17
damin (mm)12

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed80000
Nmax (RPM)Limiting speed48000
krMinimum radial load factor15
foCalculation factor9.4
C (lb)Dynamic load capacity256
C0 (lb)Static load capacity128
Pu (lb)Fatigue load limit6

Mass

Attribute nameAttribute value
Weight(lbs)0.01

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
