Sealed Stainless Steel Deep Groove Ball Bearing: SS 6006-2RS1

Sealed Stainless Steel Deep Groove Ball Bearing: SS 6006-2RS1

Deep Groove, Single Row, Stainless Steel, Sealed Ball Bearing
$45.91
EA

checkbox icon This item typically ship in 1-4 weeks.

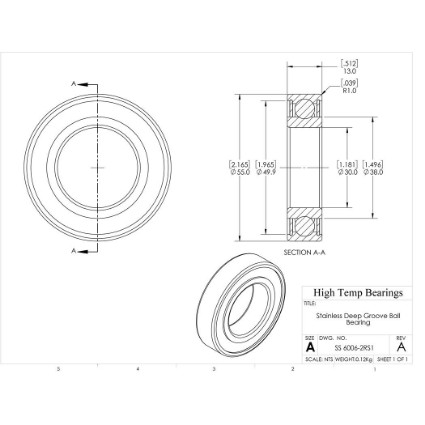

CAD
Specifications:
Attribute nameAttribute value
SealsSeals
Shaft Size30mm
D (mm)55
B (mm)13
d1 (mm)38
D2 (mm)49.9
C (lb)2495
C0 (lb)1798
Pu (lb)80
Nmax (RPM)8000
Weight(lbs)0.26
Code100120
PackageQTY1
UOMEA
Series6000
Bore (mm)30
C (kN)11.1
C0 (kN)8
Pu (kN)0.355
Ra (mm)1
Da (mm)50.4
damin (mm)34.6
kr25
fo15
r (mm)1
ClearanceC3
Tmax (F)248
Tmin (F)-10
Construction248F Seals
DutyStainless
Material440C
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings.
