25mm 6005 Stainless Steel Deep Groove Sealed Bearing
Print Page
Sealed Stainless Steel Deep Groove Ball Bearing: SS 6005-2RS1
Sealed Stainless Steel Deep Groove Ball Bearing: SS 6005-2RS1
Deep Groove, Single Row, Stainless Steel, Sealed Ball Bearing
$39.00
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.

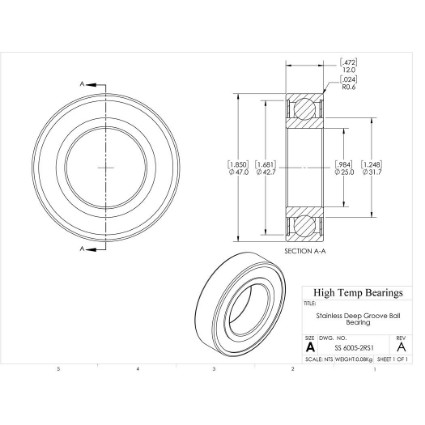

CAD
PDF
DWG
STP
Specifications:
metric
Attribute name
Attribute value
Seals
Seals
Shaft Size
25mm
D (mm)
47
B (mm)
12
d1 (mm)
31.7
D2 (mm)
42.7
C (lb)
1915
C0 (lb)
1281
Pu (lb)
56
Nmax (RPM)
9500
Weight(lbs)
0.18
Code
100118
PackageQTY
1
UOM
EA
Series
6000
Bore (mm)
25
C (kN)
8.52
C0 (kN)
5.7
Pu (kN)
0.25
Ra (mm)
0.6
Da (mm)
43.8
damin (mm)
28.2
kr
25
fo
15
r (mm)
0.6
Clearance
C3
Tmax (F)
248
Tmin (F)
-10
Construction
248F Seals
Duty
Stainless
Material
440C
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings.
