15mm 6002 Stainless Steel Deep Groove Open Bearing|High Temp Bearings

Picture of Open Stainless Steel Deep Groove Ball Bearing

Deep Groove, Single Row, Stainless Steel, Open Ball Bearing

$14.28

This product has a minimum quantity of 2

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		100111
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		6000
Construction		248F Open
Duty		Stainless
Seals		None
Shaft Size		15mm
Material		440C

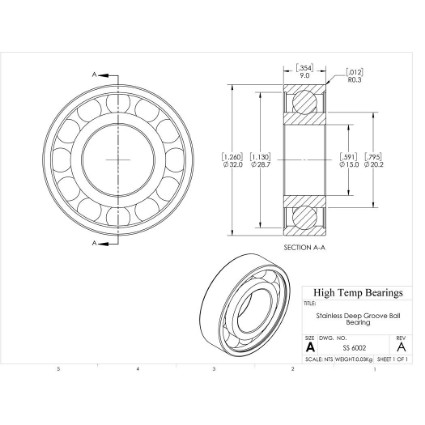

Dimensions

Attribute name		Attribute value
Bore (mm)		15
D (mm)		32
B (mm)		9
r (mm)		0.3
D2 (mm)		28.7
d1 (mm)		20.2

Abutment Dimensions

Attribute name		Attribute value
Ra (mm)		0.3
Da (mm)		30
damin (mm)		17

Calculation Data

Attribute name		Attribute value
Nr (RPM)	Reference speed	50000
Nmax (RPM)	Limiting speed	32000
kr	Minimum radial load factor	25
fo	Calculation factor	14
C (lb)	Dynamic load capacity	1052
C0 (lb)	Static load capacity	618
Pu (lb)	Fatigue load limit	27

Mass

Attribute name		Attribute value
Weight(lbs)		0.07

Tolerance Class

Attribute name		Attribute value
Clearance		C3

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
