Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA215-48

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA215-48

SNA Stainless, Eccentric Collar, Ball Bearing Insert
$0.00

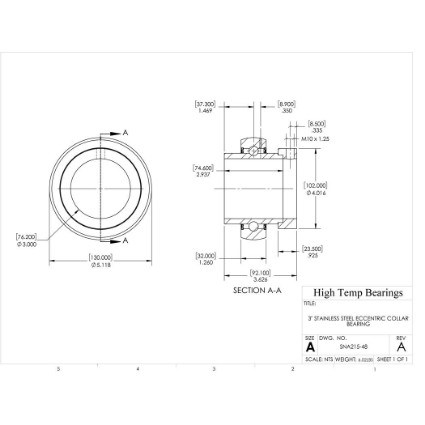

CAD
MANUAL
Specifications:
Attribute nameAttribute value
SeriesSNA
Bore (in)3
D (in)5.1181
B (in)2.937
B1 (in)3.626
C (in)1.2598
S (in)1.4685
B2 (in)0.9252
h (in)0.354
d1 (in)4.157
G (in)0.3346
ds3/8-24 UNF
C (lb)14620
C0 (lb)10540
Weight(lbs)6.02
Code103319
PackageQTY1
UOMEA
Dynamic Capacity (lb)14620
Static Capacity (lb)10540
Tmax (F)248
Tmin (F)-10
