75mm Stainless Mounted Eccentric Bearing Insert|High Temp Bearings

Picture of Stainless Steel, Eccentric Collar, Ball Bearing Insert

Stainless Steel Eccentric Collar Locking Ball Bearing Insert

RFQ

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		103317
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SNA
Shaft Size		75mm
Collar		Eccentric
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning

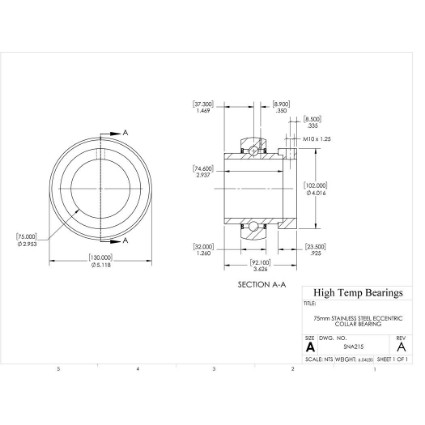

Dimensions

Attribute name		Attribute value
Bore (in)		2.9528
D (in)		5.1181
B (in)		2.937
B1 (in)		3.626
S (in)		1.4685
C (in)		1.2598
B2 (in)		0.9252
h (in)		0.354
d1 (in)		4.157
G (in)		0.3346
ds		3/8-24 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	14620
C0 (lb)	Static Load Capacity	10540

Mass

Attribute name		Attribute value
Weight(lbs)		6.04

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
