Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA214

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA214

SNA Stainless, Eccentric Collar, Ball Bearing Insert
$0.00

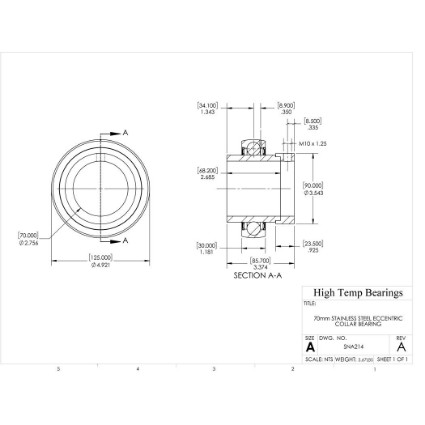

CAD
MANUAL
Specifications:
Attribute nameAttribute value
SeriesSNA
Bore (in)2.7559
D (in)4.9213
B (in)2.685
B1 (in)3.374
C (in)1.1811
S (in)1.3425
B2 (in)0.9252
h (in)0.354
d1 (in)3.5433
G (in)0.3346
ds3/8-24 UNF
C (lb)13530
C0 (lb)9620
Weight(lbs)5.67
Code103315
PackageQTY1
UOMEA
Dynamic Capacity (lb)13530
Static Capacity (lb)9620
Tmax (F)248
Tmin (F)-10
