Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA213-40

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA213-40

SNA Stainless, Eccentric Collar, Ball Bearing Insert
$0.00

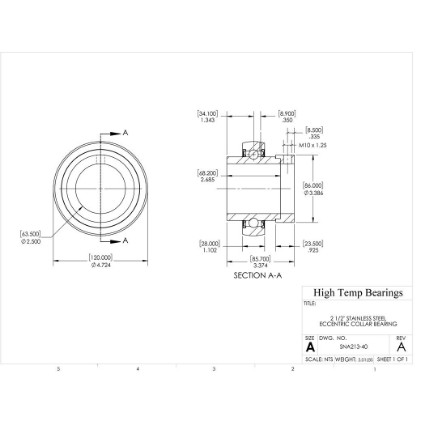

CAD
MANUAL
Specifications:
Attribute nameAttribute value
SeriesSNA
Bore (in)2.5
D (in)4.7244
B (in)2.685
B1 (in)3.374
C (in)1.124
S (in)1.3425
B2 (in)0.9252
h (in)0.354
d1 (in)3.3858
G (in)0.3346
ds3/8-24 UNF
C (lb)12400
C0 (lb)8760
Weight(lbs)5.01
Code103314
PackageQTY1
UOMEA
Dynamic Capacity (lb)12400
Static Capacity (lb)8760
Tmax (F)248
Tmin (F)-10
