Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA212-39

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA212-39

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

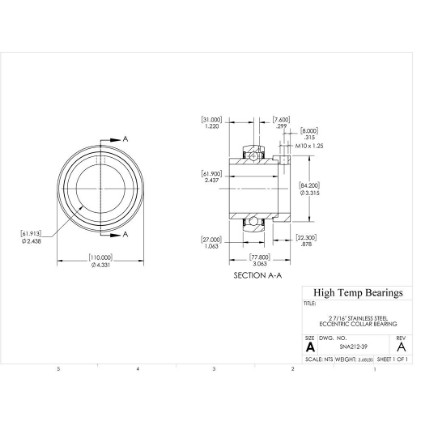

Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size2-7/16"
D (in)4.337
B (in)2.437
B1 (in)3.63
C (in)1.63
S (in)1.225
B2 (in)0.878
h (in)0.2992
d1 (in)3.315
G (in)0.315
ds3/8-24 UNF
C (lb)11500
C0 (lb)7490
Weight(lbs)3.68
Code103312
PackageQTY1
UOMEA
Bore (in)2.4375
Dynamic Capacity (lb)11500
Static Capacity (lb)7490
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
