2-3/16" Stainless Mounted Eccentric Bearing Insert|High Temp Bearings

Picture of Stainless Steel, Eccentric Collar, Ball Bearing Insert

Stainless Steel Eccentric Collar Locking Ball Bearing Insert

RFQ

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

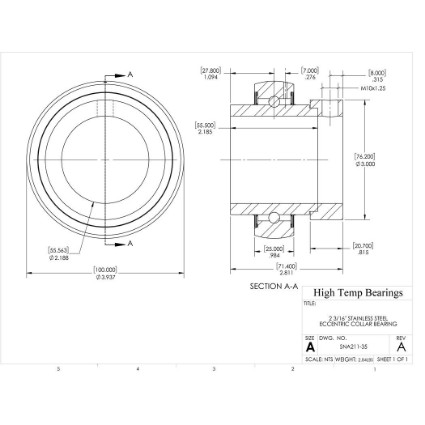

CAD

Specifications:

Description

Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		103308
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SNA
Shaft Size		2-3/16"
Collar		Eccentric
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning

Dimensions

Attribute name		Attribute value
Bore (in)		2.1875
D (in)		3.937
B (in)		2.185
B1 (in)		2.811
S (in)		1.817
C (in)		0.9843
B2 (in)		0.815
h (in)		0.2756
d1 (in)		3
G (in)		0.315
ds		3/8-24 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	9490
C0 (lb)	Static Load Capacity	6440

Mass

Attribute name		Attribute value
Weight(lbs)		2.84

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
