Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA211

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA211

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

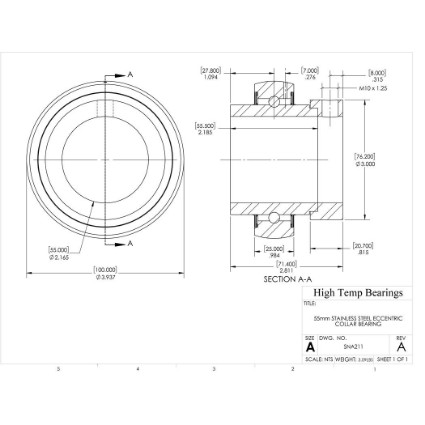

CAD
Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size55mm
D (in)3.937
B (in)2.185
B1 (in)2.811
C (in)0.9843
S (in)1.817
B2 (in)0.815
h (in)0.2756
d1 (in)3
G (in)0.315
ds3/8-24 UNF
C (lb)9490
C0 (lb)6440
Weight(lbs)3.09
Code103305
PackageQTY1
UOMEA
Bore (in)2.1654
Dynamic Capacity (lb)9490
Static Capacity (lb)6440
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
