Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA210-31

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA210-31

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
$466.01
EA

checkbox icon This item typically ship in 1-4 weeks.

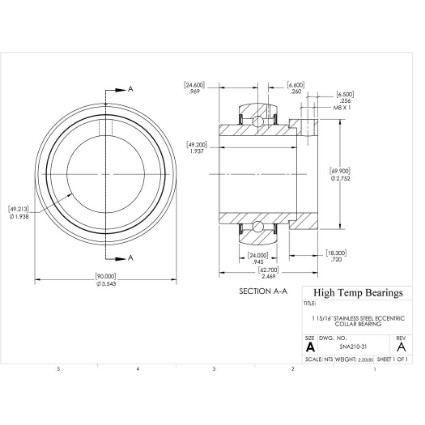

CAD
Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size1-15/16"
D (in)3.5433
B (in)1.937
B1 (in)2.4685
C (in)0.9449
S (in)0.9685
B2 (in)0.725
h (in)0.2638
d1 (in)2.752
G (in)0.2559
ds5/16-24 UNF
C (lb)7400
C0 (lb)4910
Weight(lbs)2.2
Code103303
PackageQTY1
UOMEA
Bore (in)1.9375
Dynamic Capacity (lb)7400
Static Capacity (lb)4910
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
