Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA209-27

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA209-27

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

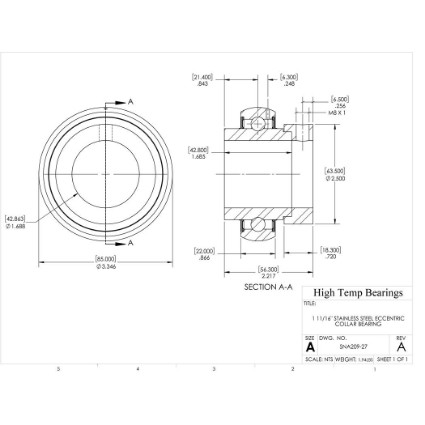

CAD
Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size1-11/16"
D (in)3.3465
B (in)1.685
B1 (in)2.2165
C (in)0.8661
S (in)0.8425
B2 (in)0.725
h (in)0.2677
d1 (in)2.5
G (in)0.2559
ds5/16-24 UNF
C (lb)7110
C0 (lb)4460
Weight(lbs)1.94
Code103299
PackageQTY1
UOMEA
Bore (in)1.6875
Dynamic Capacity (lb)7110
Static Capacity (lb)4460
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
