Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA208

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA208

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
$319.39
EA

checkbox icon This item typically ship in 1-4 weeks.

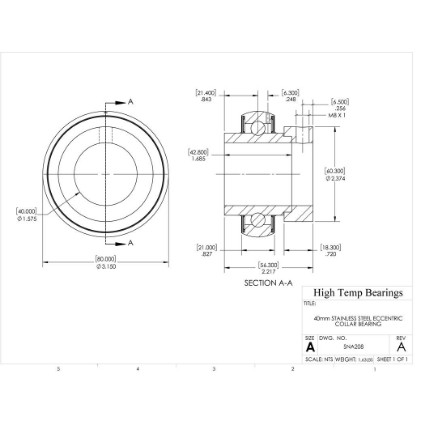

CAD
Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size40mm
D (in)3.1496
B (in)1.685
B1 (in)2.2165
C (in)0.8268
S (in)0.8425
B2 (in)0.725
h (in)0.248
d1 (in)2.374
G (in)0.2559
ds5/16-24 UNF
C (lb)6375
C0 (lb)3960
Weight(lbs)1.63
Code103294
PackageQTY1
UOMEA
Bore (in)1.5748
Dynamic Capacity (lb)6375
Static Capacity (lb)3960
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
