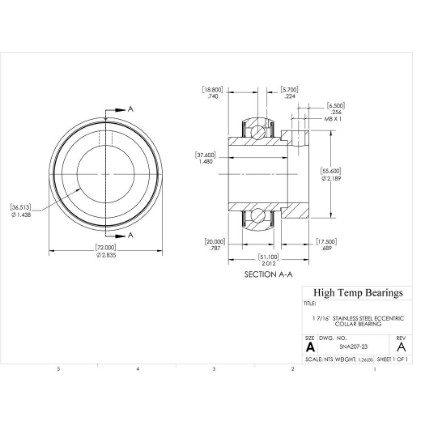

1-7/16" Stainless Mounted Eccentric Bearing Insert
Print Page
Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA207-23
Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA207-23
Stainless Steel Eccentric Collar Locking Ball Bearing Insert
$237.92
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
MANUAL
Specifications:
metric
Attribute name
Attribute value
Series
SNA
Shaft Size
1-7/16"
D (in)
2.8346
B (in)
1.483
B1 (in)
2.18
C (in)
0.7874
S (in)
0.742
B2 (in)
0.689
h (in)
0.2244
d1 (in)
2.189
G (in)
0.2559
ds
5/16-24 UNF
C (lb)
5535
C0 (lb)
3340
Weight(lbs)
1.26
Code
103293
PackageQTY
1
UOM
EA
Bore (in)
1.4375
Dynamic Capacity (lb)
5535
Static Capacity (lb)
3340
Tmax (F)
248
Tmin (F)
-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
