Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA207

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA207

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
$254.11
EA

checkbox icon This item typically ship in 1-4 weeks.

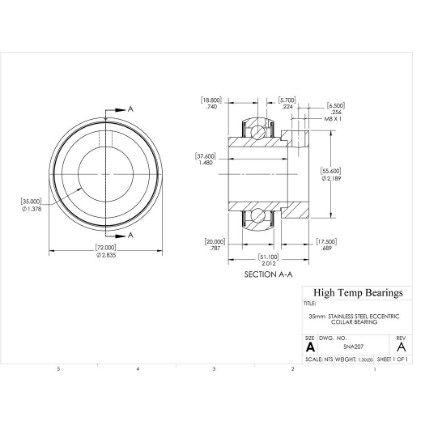

CAD
Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size35mm
D (in)2.8346
B (in)1.483
B1 (in)2.18
C (in)0.7874
S (in)0.742
B2 (in)0.689
h (in)0.2244
d1 (in)2.189
G (in)0.2559
ds5/16-24 UNF
C (lb)5535
C0 (lb)3340
Weight(lbs)1.3
Code103289
PackageQTY1
UOMEA
Bore (in)1.378
Dynamic Capacity (lb)5535
Static Capacity (lb)3340
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
