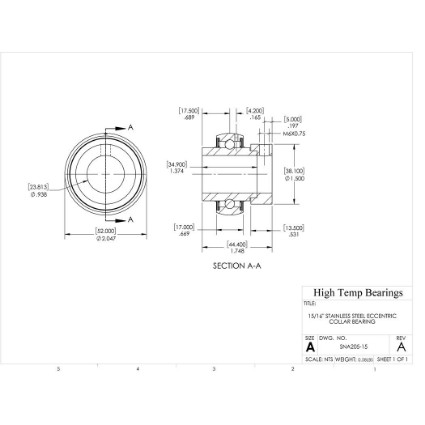

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA205-15

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA205-15

SNA Stainless, Eccentric Collar, Ball Bearing Insert
$0.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
SeriesSNA
Bore (in)0.9375
D (in)2.472
B (in)1.374
B1 (in)1.748
C (in)0.6693
S (in)0.689
B2 (in)0.5315
h (in)0.1654
d1 (in)1.5
G (in)0.1969
ds1/4-28 UNF
C (lb)3010
C0 (lb)1750
Weight(lbs)0.58
Code103282
PackageQTY1
UOMEA
Dynamic Capacity (lb)3010
Static Capacity (lb)1750
Tmax (F)248
Tmin (F)-10
