Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA205-14

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA205-14

Stainless Steel Eccentric Collar Locking Ball Bearing Insert
$117.87
EA

checkbox icon This item typically ship in 1-4 weeks.

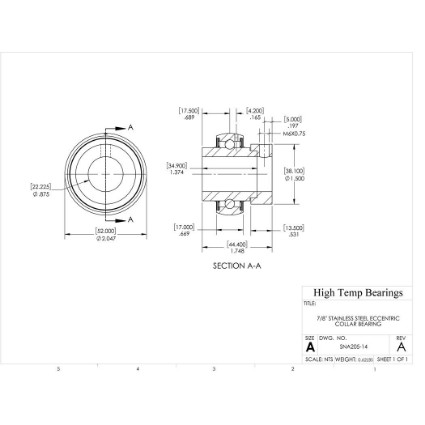

CAD
Specifications:
Attribute nameAttribute value
SeriesSNA
Shaft Size7/8"
D (in)2.472
B (in)1.374
B1 (in)1.748
C (in)0.6693
S (in)0.689
B2 (in)0.5315
h (in)0.1654
d1 (in)1.5
G (in)0.1969
ds1/4-28 UNF
C (lb)3010
C0 (lb)1750
Weight(lbs)0.62
Code103281
PackageQTY1
UOMEA
Bore (in)0.875
Dynamic Capacity (lb)3010
Static Capacity (lb)1750
Tmax (F)248
Tmin (F)-10
Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.
