Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA204-12

Picture of Stainless Steel, Eccentric Collar, Ball Bearing Insert

Stainless Steel, Eccentric Collar, Ball Bearing Insert: SNA204-12

Stainless Steel Eccentric Collar Locking Ball Bearing Insert

$124.44

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.

Free Ground Shipping on orders over $99 use Code "SHIPFREE" at checkout

Attribute name		Attribute value
Daily Shipping Deal		SHIPFREE

Product Information

Attribute name		Attribute value
Code		103279
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SNA
Shaft Size		3/4"
Collar		Eccentric
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning

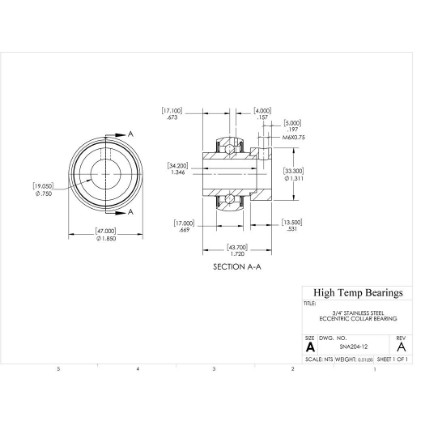

Dimensions

Attribute name		Attribute value
Bore (in)		0.75
D (in)		1.854
B (in)		1.3465
B1 (in)		1.725
S (in)		0.6732
C (in)		0.6693
B2 (in)		0.5315
h (in)		0.1475
d1 (in)		1.311
G (in)		0.1969
ds		1/4-28 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	2740
C0 (lb)	Static Load Capacity	1600

Mass

Attribute name		Attribute value
Weight(lbs)		0.51

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
