60mm Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert|High Temp Bearings

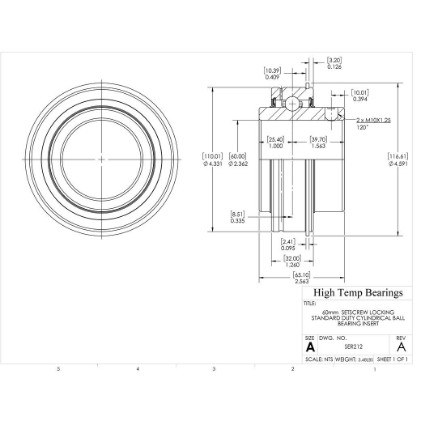

Picture of Standard Duty, Setscrew Locking, Cylindrical Ball Bearing Insert

Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert

$46.86

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and has a cylindrical OD for using with a cylindrically bored housing or frame. This insert is not self-aligning.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		111090
Shaft Size		60mm
Series		SER
Collar		Setscrew
Greasable	Re-lubrication	Greasable
Construction		Cylindrical
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA

Dimensions

Attribute name		Attribute value
Bore (in)		2.3622
D (in)		4.331
B (in)		2.563
S (in)		1
C (in)		1.26
h (in)		0.335
S1(in)		1.563
G (in)		0.394
ds		M10x1.25
P (in)		4.591
R (in)		0.409
J (in)		0.126
A (in)		0.0949

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	10736
C0 (lb)	Static Load Capacity	7403

Mass

Attribute name		Attribute value
Weight(lbs)		3.48

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
